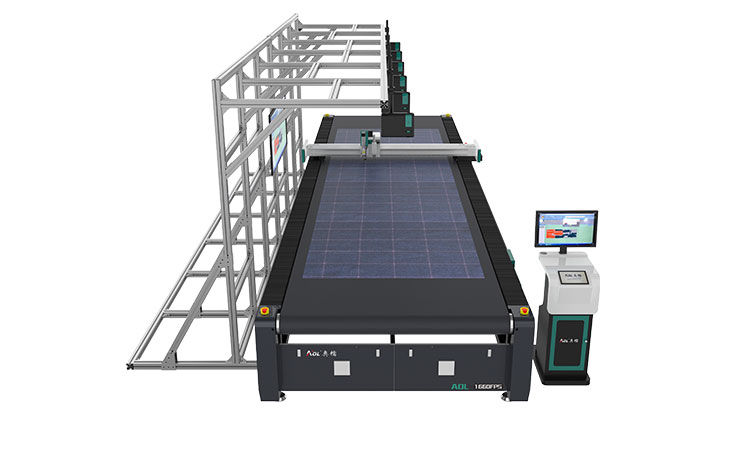

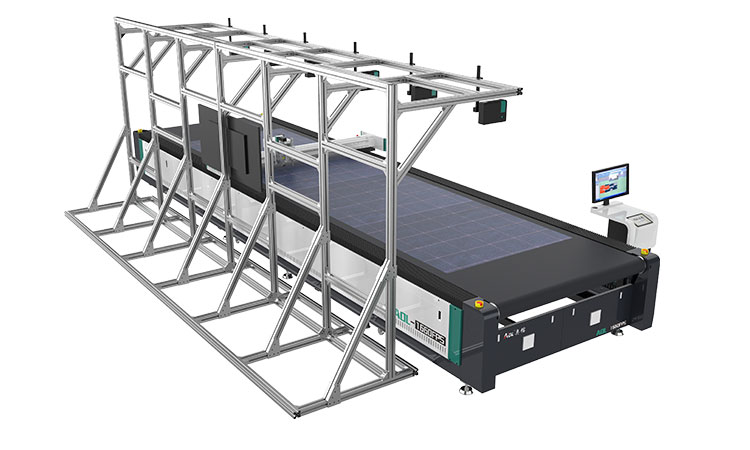

Digital Fabric CNC Cutting Machine

In recent years, textile industry cutting systems have been changing from traditional production modeto automatic production mode. These AOL computer controlled fabric cutting machines (CNC Fabric Cutter Machine) are designed to meet market demand for high-mix-low-volume production capabilities and quick delivery. They not only offer precise, productive, and durable cutter but can also supply you with the right cutting technology for your specific application.

Detailed introduction

AOL will offer the best fabric automatic cutting machine and solutions to help the apparel brands and manufacturers maximize quality and profitability and get their products to market faster, smarter, and better.

Related parameters of digital fabric CNC cutting machine：

Technical parameters / model	AOL-1625	AOL-1825
Effective working area	1600x2500mm	1800x2500mm
Multi-function tool	Pneumatic knife, projector,vibrating knife,Round knife
safety devices	Using infrared sensors, responsive, safe and reliable，Anti-collision system，Four corner emergency stop button
Cutting speed	300-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to the material
Applicable materials	Long-haired carpets, carpets, car floor mats, textile carpets, cotton and linen carpets, Particle fleece,Diatom mud carpet, fake wool carpet, printed carpet,etc.
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	The X\Y axis is divided into two kinds of rack or belt
rated power	11kw
Rated voltage	380V±10%/220V±10% Optional
Control System	Chinese and English LCD touch screen
Operating environment	Panasonic servo motor, high precision helical gear reducer, Taiwan Yintai rail, Germany Henryan rack, Omron sensor, Schneider low-voltage appliances, Taiwan Mingwei power supply, Germany cable, 42mm adsorption platform, automatic feeding, Taiwan rail, energy saving fan
Support file format	AI、PLT、DXF、PDF、 PCE、XML
Overall size	360024001250	360026001250

Advantages of AOL Digital Apparel Cutting Machine：

Save 30% materials with nesting software

3-5 times higher efficiency than manual work

Save materials and improve utilization

Neat edge-cutting, no burrs

Special-shaped cutting with high precision

Automatic drawing-import, automatic tracing-edge and cutting

Product advantages.jpg

Materials available: Canvas, Chemical Fiber, Linen, Mesh, Nonwovens, Jeans, Knitted, Batik, Brocade, Chenille, Chiffon, Corduroy, Crepe, Denim, Eyelet, Faille, Faux Fur, Faux Leather, Faux Silk, Faux Suede, Faux Wool, Flannel, Fleece, Gauze, Georgette, Gingham, Jacquard, Muslin, Organza, Quilting Cotton, PUL, Satin Charmeuse, Taffeta, Velvet, Velveteen, Tulle, Wool, Zorb, etc.

AOL after-sales service:

1. The AOL after-sales service team has more than 20 engineers.

2. At least 3 engineers serving an agent/customer, all of them can speak English.

3. We support complete user manual, use video and photos.

4. We support remote assistance to help you install and use the software.

5. We support 24*7 online guidance and services.

6. Our machines are guaranteed for 3 years, except for felts, knives and blades, during this period, if there is any problem, we will replace them with new ones for free by DHL, and for knives, we will repair them for free within one year.

7. We promise to send out replacement parts within 24 hours.

8. We will set up a service group for you, including AOL sales staff, AOL engineers, AOL sales managers, AOL sales directors and you (or your staff), if you have any questions, we will reply within 1 minute.

9. Free upgrade of AOL software for life.

after-sales service.jpg

Machine Display

Control System

Independent research and development of human-machine interface operating system, humanized design, intelligent recognition of knife cutting, fast capture of cutting targets.

Accurate and Stable Working Table

The cutting table is build with aviation aluminum with honeycomb structure inside; sturdy, high-precision, stable for long-term running.

Imported Servo Motor

The machine with more stable performance and higher precision.

Imported Guide Belt

The imported conveyor ensures the conveying material is smoother, with better ventilation and not deformed.

Modutarized Cutting Tools

The modularized design ensures the cutting tools can be used on all the AOL product series.

The Thickness

The thickness of machine some steel plate parts is 12-20mm, it ensures the machine will be non-deformation permanently.

Diverse Tools

Oscillating Knife Tool

The Electrical Oscillating Tool is super suitable for cutting the material of medium density.Coordinated with various kinds of blades, applied for cutting different materials.

Cutting materials: kt board , foam board, honeycomb board, car mat, seat cover, corrugated, cardboard, kt board, gray board, composite materials, leather, corrugated box.

Creasing Wheel Tool

A selection of creasing tools allows for perfect creasing on the corrugated materials. Coordinated with the cutting software,the tool can cut the corrugated material along its structure or the reverse direction to have a finest creasing result,without any damage to the corrugated material's surface.

Cutting materials: Packing box, folding card, corrugated Board, carton,etc.

V-CUT Knife Tool

Specialized for V-cut processing on corrugated materials,AOL v-Cut Tool can cut 0°,15°,22.5°,30°and 45°.

Cutting material: soft board , kt board , corrugated board, packing box, slotting of corrugated boxes, medium-density material v cuts, carton packaging, hard cardboard, gift boxes,etc.

Kiss-CUT Knife Tool

The kiss cut tool is mainly used for cutting vinyl materials (labels).aol cut makes it possible that the tool cuts through the top part of the material without any damage to the bottom part.It allows high cutting speed for material processing.

Cutting materials: sticker, car sticker, reflective materials, self-adhesive vinyl, label, vinyl, engineering reflective film, double-layer adhesives, etc.

Pneumatic Knife Tool

Driven by compressed air,Pneumatic Knife Tool with 6mm stroke, is especially for cutting hard and compact materials. Equipped with different kinds of blades,it can make different process effect.The tool can cut the material up to 110mm by using specialized blades.

Cutting materials: asbestos board, asbestos free board, PTFE, rubber board , fluorine rubber board, silica gel board, graphite board, graphite composite board, etc.

Milling Knife Tool

With imported spindle,it has a rotating speed of 60000 rpm.The router driven by high frequency motor can be applied for cutting hard materials with the maximum thickness of 22 mm.The customized cleaning device cleans up the production dust and debris.The air cooling system extends blade life.

Cutting materials: acrylic MDF board, pvc board, display stand, etc.

Drag Knife Tool

AOL drag knife tool can perfectly cut materials with the thickness up to 5mm. Compared to other cutting tools,it is the most cost-effective one that allows for the fastest cutting speed and lowest maintenance cost.

Cutting materials: backlit film, sticker, pp paper , folding card, flexible material less than 3mm thickness, advertising materials KT board, flexible plastics, mobile phone film, etc.

Driven Rotary Knife Tool

Driven Rotary Tool puts the materials by the high-speed rotating blades driven by the servo motor.The tool can be installed with circular blades and decagonal blades .etc which are especially suitable for cutting woven materials.

Cutting materials: textiles, canvas, leather, fabric, carbon fabric, glass fabric, carpet, blanket, fur, woven fabric, composite double, multi-layer material, flexible plastic, etc.
