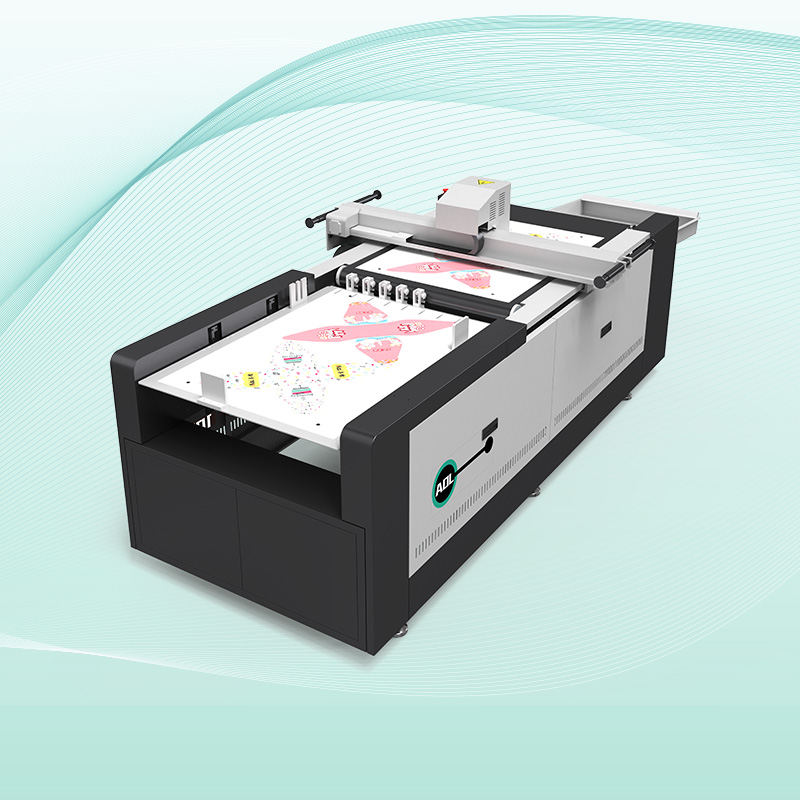

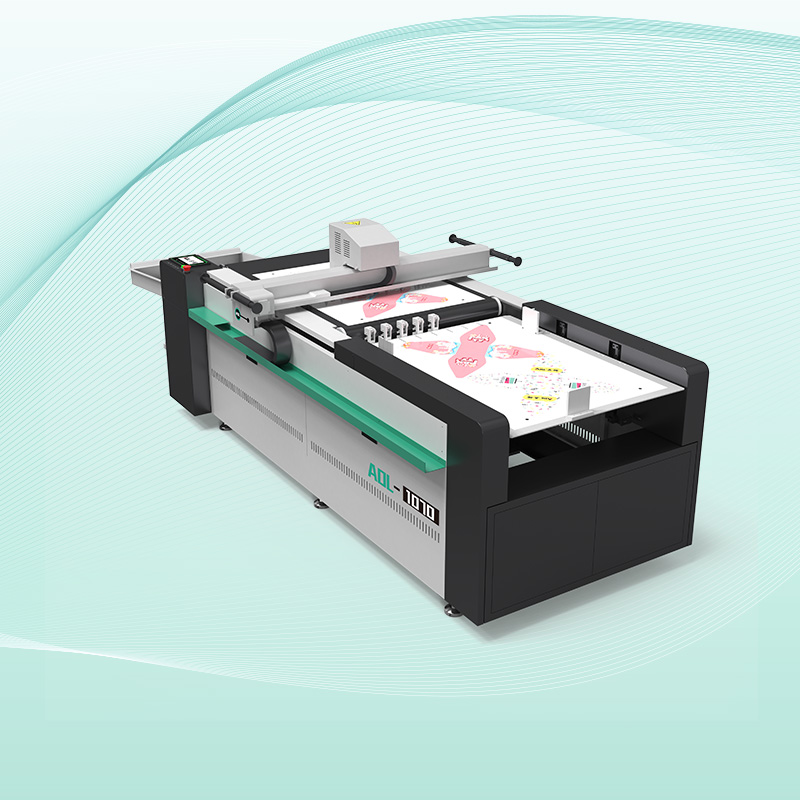

AOL-1070PAS Digital Cutting Plotter for Sticker Cardboard
AOL-PAS automatic intelligent cutting system adopts fully automatic vacuum chuck and automatic lifting and feeding platform. Equipped with 3 tools, 1 knife for cutting ,1 knife for kisscut and creasing wheel is also included. Accoring your inquiry, oscillating knife tool, drag knife tool and V-cut knife tool as the options. It can quickly and precisely make through cutting,half cutting,creasing and marking. Besides, the machine has CCD camrea, which highly improve cutting accuracy, It is a cost-effective smart equipment that meets all your creative processing. AOL-PAS machine is widely used in packaging and signs, including, paper, board, sticker, vinyl and so on. It is the key equipment for small volume production and sample making. This machine provides perfect solutions for printing.
Detailed introduction

  AOL-1070PAS machine is widely used in packaging and signs, including, paper, board, sticker, vinyl and so on. It is the key equipment for small volume production and sample making. This machine provides perfect solutions for printing.Self-adhesive stickers.jpg

Advantages of AOL-1070PAS automatic intelligent cutting system:

1. Fully automatic equipment, automatic loading and unloading, saving labor costs.

2. The system intelligently optimizes typesetting and cutting, provides better cutting and filling paths, and saves more than 30% of materials.

3. Anti-static interference and soft start device to protect the safety and stability of the equipment.

4. The whole machine is dust-proof to reduce the equipment failure rate and prolong the service life of the equipment.

5. The infrared induction safety device ensures the safety of the operator during the high-speed movement of the machine, and at the same time avoids the loss of cutting materials.

6. Professional R&D team can provide assembly line supporting solutions


AOL-1070PAS Digital Cutting Plotter parameters:

    Model

     AOL-1070PAS
    Working area     1000*700mm
    Multi-function head

     Oscillating knife cutting tool, drag knife cutting tool, crease wheel,cut-through-knife,marking pen and CCD camera

    Tool configuration      Multiple cutting knives
    Size      2540*1100*1100mm  L'W'H
    Safety device       Using infrared sensors,  responsive, safe and reliable.
    Translational velocity      800-1300mm/s
    Cutting speed      0-1000mm/s(according to different cutting materials)
    Cutting thickness      ≤10mm (according to different materials)
    Repeated accuracy      ≤0.1mm
    Cutting materials

     PVC board, PP board and white card paper, cardboards, paper, PVC, film, sticker, etc.

The maximum cutting depth is up to 20mm, depending on material density.

    Transmission system      Imported(Digital servo motor, linear guide, belt)
    Instruction system      HP-GL compatible format
    Rated voltage     220V±10%/50HZ
    File form     AI、PLT、DXF、PDF、 PCE、XML

AOL Service

Packaging of CNC rubber cutting machine

1. Outer packing: Standard sea export plywood box.

2. Inner packing: stretchable film and plastic film to prevent moisture.

If you have special requirements, we can negotiate amicably.

About Warranty Policy

Our standard warranty period is calculated from the time of delivery, we provide you with a three-year warranty service, and provide professional machine maintenance and maintenance


The updated maintenance of machine parts is sold to the customer at the lowest price.

If you want to know more about performance issues, please leave a message , we will have a professional staff contact you.
