Flatbed die cutting machine | AOL manufacture
Flatbed die cutting machine is suitable for cutting any non-metallic materials, especially in the packaging industry, with high cutting accuracy and high-quality sample cutting.
Detailed introduction

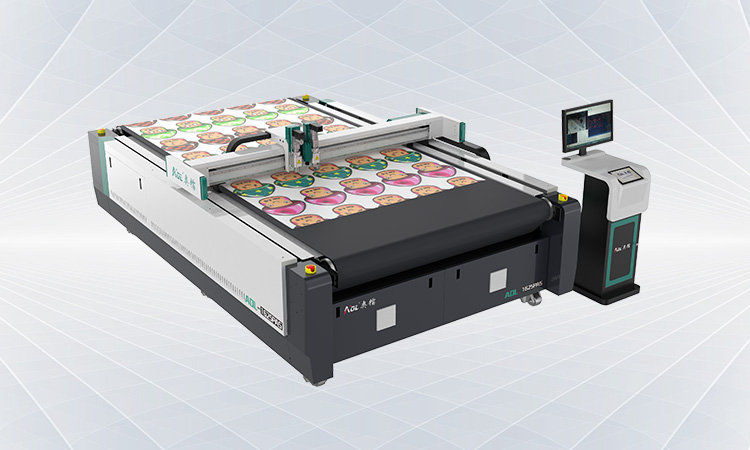

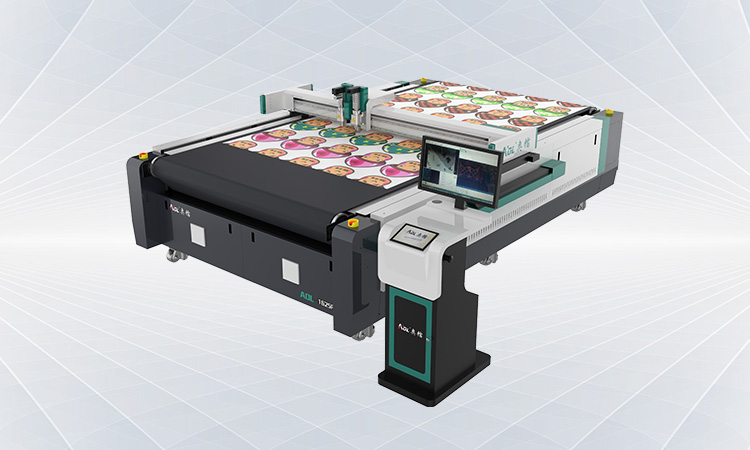

Flatbed die cutting  machine.jpg

Advantage of Flatbed die cutting machine

1.Large format flatbed die cutting machine, not limited to the area of a single material (the area of the platform can be customized)

2. Super adsorption capacity, smooth material adsorption, no deformation during cutting.

3. The cold cutting method will not cause any pollution, and it is an environmentally friendly and safe cutting method.

4. In addition to the packaging industry, non-metallic materials can be cut to adapt to materials in multiple industries

5. AOL flatbed die cutting machine has a variety of cutters, corresponding to cutting a variety of materials, and can be flexibly cut and replaced.

6. Japan's Panasonic servo motor provides strong power, and the material can be cut at one time.

7. Automated flatbed die cutting machine! Use automatic feeding and receiving to minimize manual involvement and improve accuracy.

advantage of Flatbed die cutting machine

Flatbed die cutter applicable materials

Packaging industry: carton, corrugated cardboard, honeycomb cardboard (through cutting, oblique cutting), etc.

Advertising industry: KT board, Foam board, PP paper, light box paper, stickers, labels, etc.

Carpet industry: Carpets of various materials can be cut.

Composite material industry: rubber, PTFE, PVC, PDLC film, soft glass, silica gel, waterproof materials, etc.

Textile industry: AOL flatbed die cutting machine can cut all kinds of textile fabrics, waterproof fabrics, etc.

Automotive interiors industry: The interiors of a variety of models can be cut.

Furniture industry: curtains, sofa materials, tablecloths and other materials, AOL flatbed die cutting machine can solve it.

Gasket sealing industry: rubber gaskets, asbestos gaskets, non-asbestos gaskets, etc.

Flatbed die cutter applicable materials

Flatbed die cutter applicable materials

Parameter of Flatbed die cutting machine

  Model      AOL-1625PAS
    Working area      2500×1600mm
    Machine size (mm)      3600x2400x1200mm
    Rated power      11KW
    Fixed mode      Auto feeding type table
    Multifunctional head      Oscillating knife, Milling tool, pneumatic knife, V-cut, crease wheel, kiss cut, drag knife
    Tool configuration      Multiple cutting knives
    Safety device      Using infrared sensors,  responsive, safe and reliable.
    translational velocity      800-1200mm/s
    Cutting speed      0-1400mm/s(according to different cutting materials)
    Cutting thickness      ≤50mm(according to different cutting materials)
    Cutting materials      Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber
    Repeated accuracy      ≤0.1mm
    Capacity      2GB
    Transmission system     Imported(Digital servo motor, linear guide, synchronous belt, ball screw)
    Instruction system     HP-GL compatible format
    Voltage     380V±10%
    Other configuration

    Panasonic servo motor, high precision helical gear reducer, Taiwan Yintai rail, Germany Henryan rack, Omron sensor, Schneider low-voltage appliances, Taiwan Mingwei power supply, Germany cable, 42mm adsorption platform, automatic feeding, Taiwan rail, energy saving fan

AOL service

Package details

1. Outer packaging: standard seaborne export plywood box.

2. Inner packaging: stretchable film and plastic film to prevent moisture.

If you have special requirements for the packaging of the flatbed die cutting machine, you can communicate friendly.

Click to get product catalog and quotationpackage details of Flatbed die cutting machine


There are many options for transportation, and the default is sea transportation. If you have special requirements, please specify in advance.

Price, according to your destination information, transaction method, transportation method, we will provide you with a specific quotation.

Click to get product catalog and quotation

About the warranty policy

Our standard warranty period is calculated from the time the delivery is completed. We provide you with a three-year warranty service, and provide professional machine maintenance and maintenance

The updated maintenance of machine parts is sold to customers at the lowest price.

Product service

1) Three-year free warranty (except vulnerable parts), free inspection and maintenance of main components.

2) Provide lifetime free technology upgrade service

3) Wearable parts (such as blades, workbench covers) are always available at cost when needed.

4) Free operation training is conducted in our factory. If there is not enough time, we will send detailed training videos.

5) 24-hour online service, providing free technical support in different languages.

6) On-site technical support can be provided when needed.

7) After receiving the goods, AOL accepts unreasonable returns within seven days.
