Gasket Industry cutter

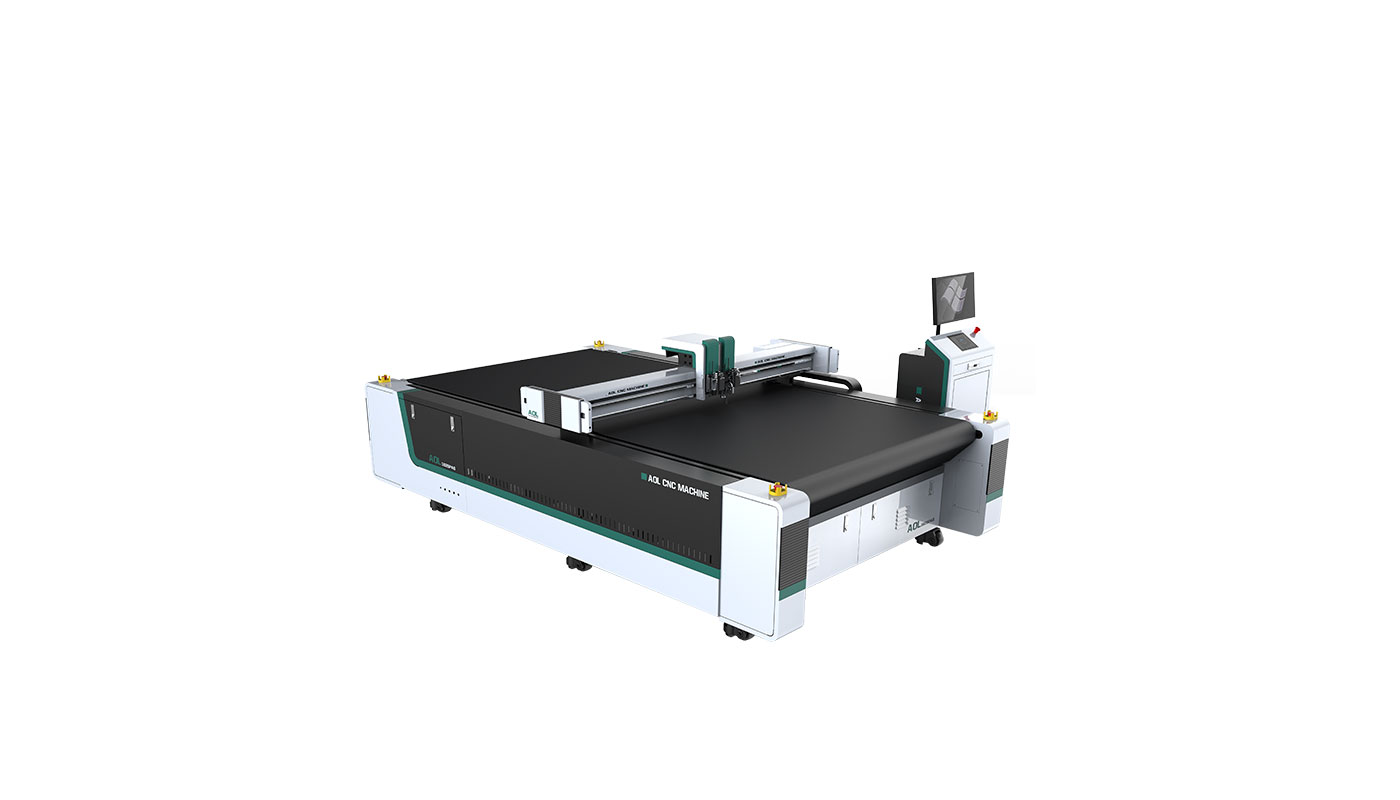

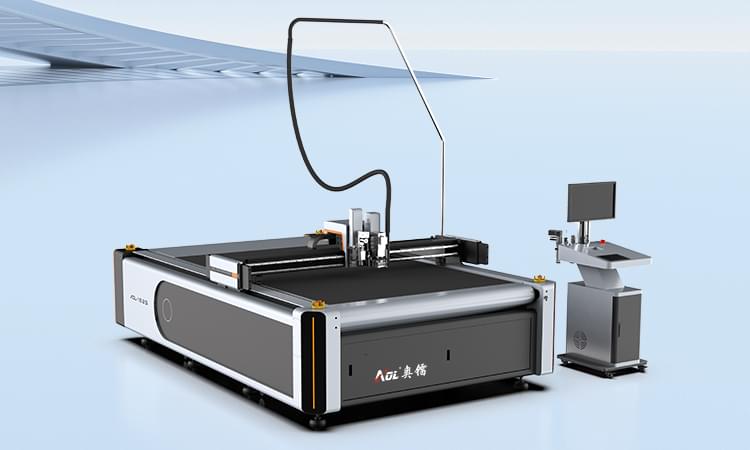

CNC Cutting Machine for Gasket Industry


AOL's CNC Cutter is perfect for manufacturing and converting gaskets materials, as it offers them proper cutting and milling solutions. Production of items from single pieces to small batch production, with always the same precision, without the detour via the expensive die mould, immediately, without lost time due to preparation of the die mould.


AOL has developed seal industry cutting system to cut single-ply and few-ply material independently, it adopts  advanced control system, which is with high cutting speed, high-precision, strong stability.

send inquiry
Material
Fluorine Rubber Board
Silica Gel Board
PTFE
Graphite Board
Graphite Metal Composite Board
Asbestos Free Board
Rubber Board
Rubber Skin Material
Complete Set of Cutting Tools
Pneumatic Knife Tool
Universal Routing Tool
Projector
Efficiency Comparison
    Type of gasket      Thickness    AOL digital cutter efficiency    Manual cutting efficiency    Instead of manual quantity



    Graphite gasket


     1.5mm     300mm/s    50-100mm/s    2 people
     2mm     300mm/s    50-100mm/s    2-3 people
     5mm     100mm/s    10mm/s    4 people

    Ordinary gasket
     3mm     300mm/s    50-100mm/s    2-3 people
     5mm     200mm/s    50mm/s    2-3 people

    Rubber gasket

     3mm     200mm/s    50mm/s    3 people
     5mm     100mm/s    10mm/s    3 people
     10mm     50mm/s    ≤10mm/s    4 people

    PTFE gasket
     3mm     150mm/s    10-50mm/s    3-4 people
     5mm     100mm/s    10mm/s    3-4 people
    The above data is for reference only, the actual operation, affected by the thickness, hardness, flexibility, etc. of the material, the data will be biased.
Hardware Dlsplay
Accurate & Stable Working Table
The cutting table is made of aviation aluminum, welded with square tubes with a wall thickness of 6mm, and finished with high-temperature heat treatment. It is strong, high-precision, and stable for long-term operation.
Imported felt
Imported felt ensures the flatness of the table top and strong adsorption capacity to ensure perfect cutting effect.
Control System
Independent research and development of human-machine interface operating system, humanized design, intelligent recognition of knife cutting, fast capture of cutting targets.
Imported Servo Motor
The machine with more stable performance and higher precision.
Modularized Cutting Tools
The modularized design ensures the cutting tools can be used on all the AOL product series.
Solve Industry problem
Standard cutting, error within 0.1mm
Neat edges, high precision
More than 2 times faster than manual cutting in cutting efficiency
No need to open grinding tools for small batch orders
Neat and beautiful upper and lower parts, no need for grinding tools
Advantages

Gasket Industry  1) High cutting precision, material saving


  2) Special-shaped cutting with high precision


  3) Consistent cutting size, without error


  4) Standard cutting, precision within 0.1mm


  5) 3-5 times higher efficiency than manual work


Cutting workflow diagram

Cutting Workflow Diagram
